Siemens Biograph Trinion PET/CT Scanner

The Siemens Biograph Trinion PET/CT offers a future-forward imaging solution designed to meet the evolving demands of modern healthcare. With integrated hardware and software, this system provides unparalleled image quality, faster scan times, and reduced radiation doses, empowering healthcare professionals to make accurate, fast decisions. Whether you’re focused on oncology, cardiology, neurology, or theranostics, the Biograph Trinion is your trusted platform for comprehensive diagnostic imaging.

Technical Specifications

PET

  • Crystal Size: 4 x 4 x 20 mm
  • TOF Performance: 239 ps
  • Scalable Axial Field of View: 18 cm, 24 cm
  • Effective Sensitivity: Up to 128 cps/kBq
  • Effective Peak NEC Rate: Up to 1,270 kcps ≤ 25 kBq/cc

CT

  • CT Slices: 64/128
  • Rotation Time: Up to 0.33 s
  • Tube Current: Up to 825 mA
  • Maximum Power: 75 kW (187 kW with SAFIRE)
  • Weight Capacity: 272 kg (600 lbs)

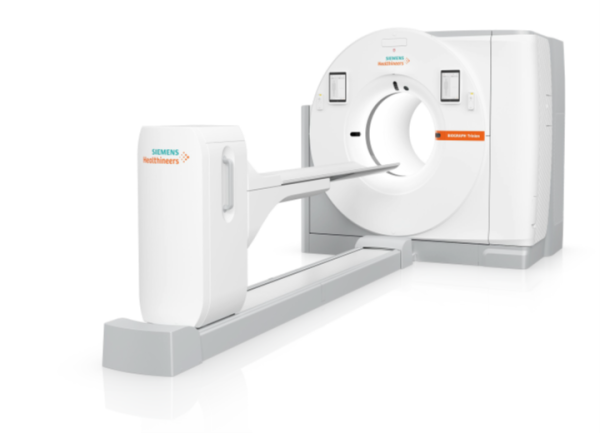

Siemens High Performance Trinion PET/CT

Key Features:

    • Ultra-Fast TOF Technology: Achieve deep lesion detectability with high spatial resolution. The Biograph Trinion offers ultra-fast time-of-flight (TOF) performance at 239 picoseconds, providing exceptional quality and sensitivity.
    • Enhanced Performance with FlowMotion AI: Leveraging AI, the system delivers motion-free images without external gating, even with challenging patient types, ensuring high-quality results every time.
    • Scalable and Future-Proof: The Biograph Trinion is designed for on-site scalability. Expand your system’s capabilities to meet future clinical needs without replacing the equipment, ensuring a sustainable investment.
    • Improved Workflow: The myExam Companion™ AI-powered software simplifies operations, helping users at all levels achieve reproducible results with ease.
    • Comfort and Efficiency: A compact, air-cooled design saves space and reduces energy consumption. The system can be integrated seamlessly into existing facilities, reducing setup time and costs.

Modality(Required)
OEM Preference
Requested Start Date
Facility Address

Clinical Applications

The Biograph Trinion is ideal for a wide range of clinical applications, including:

  • Oncology: Accurate cancer detection, staging, and treatment planning with reduced scan times and lower doses.
  • Cardiology: Precision imaging for cardiac assessments, leveraging low-dose scans for detailed heart imaging.
  • Neurology: Advanced neuroimaging for conditions like Alzheimer’s disease, stroke, and more.
  • Theranostics: Comprehensive imaging for personalized therapy planning.
  • Cardiac CTA & Stroke: Including carotid CTA for enhanced cardiovascular imaging.

Patient-Centric Design

The Biograph Trinion enhances the patient experience by offering:

  • Personalized Comfort: Patients can adjust mood lighting to create a relaxing environment.
  • Patient Monitoring: A built-in camera ensures patients are always under observation, providing peace of mind.
  • Flared Bore: A flared tunnel design to reduce patient claustrophobia, especially for those with anxiety

Sustainable Investment

The Biograph Trinion is designed to adapt to future clinical needs, making it a long-term investment:

  • On-site Upgradability: Expand your system’s axial field of view and clinical capabilities without replacing the system.
  • Remote Monitoring & Service: Siemens Healthineers offers remote monitoring to ensure optimal performance and reduce downtime.

Frequently Asked Questions



  1. What is a PET/CT scanner and how does it work?

A PET/CT scanner combines Positron Emission Tomography (PET), which shows metabolic activity in the body, with Computed Tomography (CT), which shows detailed anatomical structures. Together, they provide fused images that offer both functional and structural insights, aiding in the detection and monitoring of conditions like cancer, heart disease, and neurological disorders.

  1. Why should you choose the Biograph Trinion PET/CT?

The Biograph Trinion integrates ultra-fast time-of-flight (TOF) technology, advanced AI workflows, and scalable axial field of view, offering superior image quality, faster scan times, and reduced radiation exposure. It’s designed for seamless installation, scalability, and efficient performance in both existing and new imaging facilities.

  1. What clinical applications can the Biograph Trinion support?

The Biograph Trinion is versatile across multiple clinical specialties including oncology, cardiology, neurology, and theranostics. It supports a wide range of radiotracers for improved diagnostic capabilities, enabling precise detection, staging, and treatment monitoring.

  1. How long does a typical PET/CT scan take?=

With advancements in technology, Biograph Trinion can significantly reduce scan times. A full-body PET/CT exam that previously took around 20 minutes is now typically completed in under 10 minutes, not including the tracer uptake time.

  1. Is the Biograph Trinion suitable for high‑throughput imaging centers?

Yes, the Biograph Trinion is designed to handle high patient throughput. Its AI-assisted workflows, automated calibration, and fast scan times ensure high efficiency while maintaining consistent image quality and reproducibility.

  1. How should a patient prepare for a PET/CT scan?

Patients are generally advised to fast for a period before the scan and ensure proper hydration. Specific instructions may vary based on the radiopharmaceutical used and the clinical protocol followed at the imaging center.

  1. What does PET/CT detect?

PET/CT scans are primarily used to detect metabolic changes and anatomical abnormalities. They are crucial for early cancer detection, cardiac imaging, and evaluating neurological disorders such as Alzheimer’s, as well as other conditions affecting organ function.
